Home Robots e Industrial WAGO 2204-1401 Borna de paso para 4 conductores; con tecla; 4 mm²; con orificio de prueba; Marcaje lateral y central; para carril DIN 35 x 15 y 35 x 7,5; Push-in CAGE CLAMP®; 4,00 mm²; gris

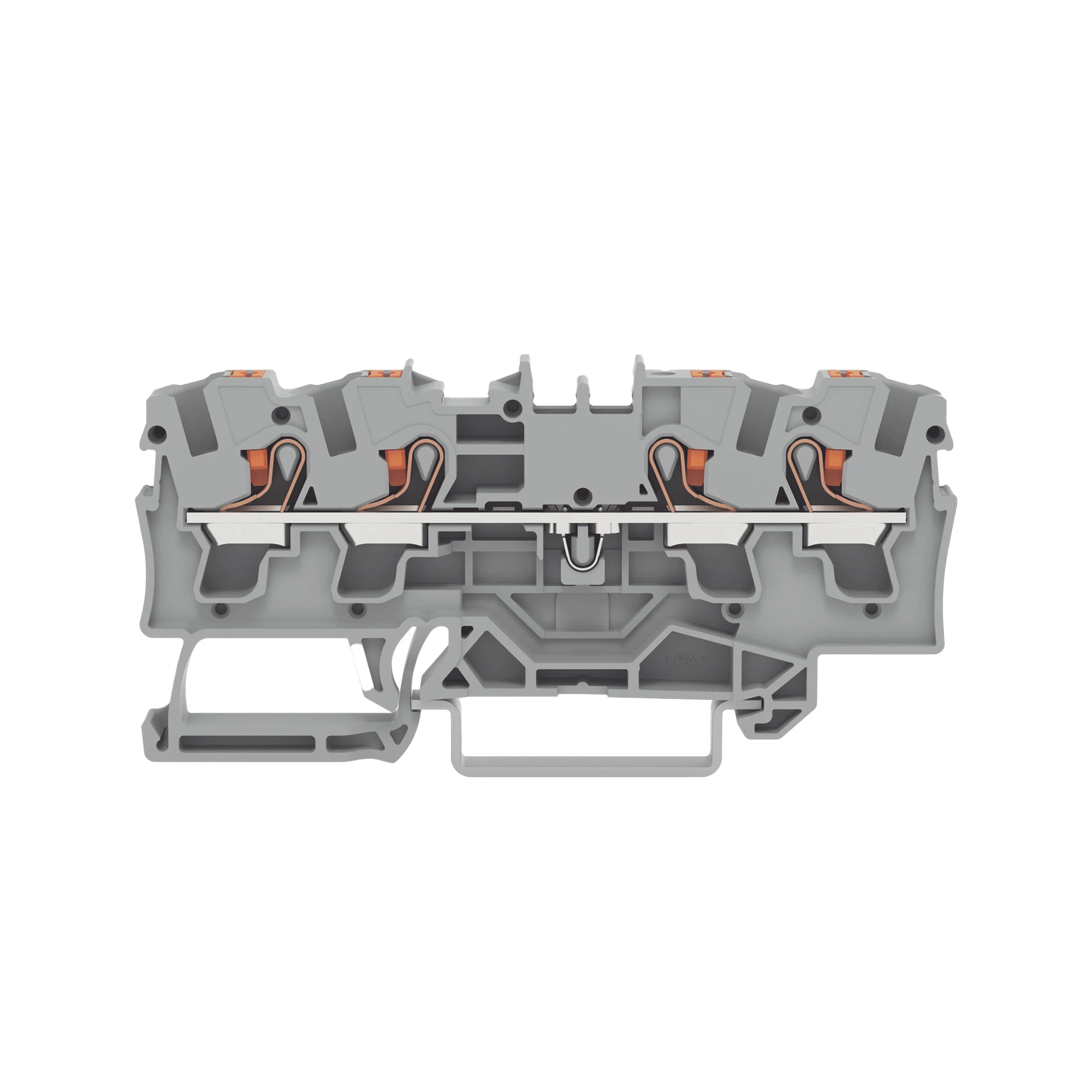

WAGO 2204-1401 Borna de paso para 4 conductores; con tecla; 4 mm²; con orificio de prueba; Marcaje lateral y central; para carril DIN 35 x 15 y 35 x 7,5; Push-in CAGE CLAMP®; 4,00 mm²; gris

$53.66

SKU: 2204-1401 Categoría: Robots e Industrial

Descripción

Descripción

Connection technology Push-in CAGE CLAMP®
Actuation type Push-button
Connectable conductor materials Copper
Nominal cross-section 4 mm²
Solid conductor 0.5 … 6 mm², 20 … 10 AWG
Solid conductor; push-in termination 1 … 6 mm², 14 … 10 AWG
Fine-stranded conductor 0.5 … 6 mm², 20 … 10 AWG
Fine-stranded conductor; with insulated ferrule 0.5 … 4 mm², 20 … 12 AWG
Fine-stranded conductor; with ferrule; push-in termination 1.5 … 4 mm², 18 … 12 AWG
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length 11 … 13 mm, 0.43 … 0.51 inches
Wiring direction Front-entry wiring
